Sunvim Motor: Y3 Series Low voltage and big output power Three-Phase Induction Motor

Y3 series motors are manufactured with new material, new process and new standard. The motors stand out for high efficiency, low noise and low vibration. This series motors can be widely use in various kinds of general use machinery like fans, pumps, machine tools, compressors, transportation equipment and so on, and can also be used in the hazardous areas like oil, chemical, steel paints, and mining industry.

Product Detail

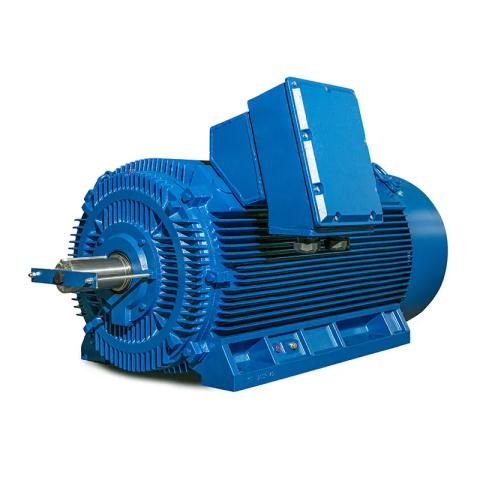

Y3 series [https://www.sunvimmotor.com/y3-series-low-voltage-and-big-output-power-three-phase-induction-motor-product/] low voltage and high power three-phase induction motor are totally enclosed fan cooled squirrel cage motors.

Specification

Standard: IEC60034

Frame Size: 355-450mm

Rated Power: 355kW-1000kW

Voltage and Frequency: 400V50Hz

Degrees of Protection: IP55

Degrees of insulation/Temperature rise: F/B

Installation Method: B3 B5 B35 V1

Ambient Temperature: -15C -+40 degrees C

Relative Humidity should be less than 90%

The altitude should be less than 1000 meters.

Cooling Method: IC411IC416IC418IC410

Image: https://www.abnewswire.com/uploads/a5dc2600d08e637d1550fac6e1911d9f.png

Standard: IEC60034

Frame Size: 355-450mm

Rated Power: 355kW-1000kW

Voltage and Frequency: 400V50Hz

Ordering Information

This catalogue is only a reference for users. Please forgive that if any change ofproducts will not make additional specify in advance. This catalogue is only a reference for users. Please forgive that if any change ofproducts will not make additional specify in advance.

Please note the rated data when ordering, such as the motor type, power, voltage, speed, insulation class, protection class, mounting type and so on.

We can design and produce special motors as followed according to therequirement of customer:

1. Special voltage, frequency and power.

2. Special insulation class and protection class.

3. With terminal box on the left side, double shaft ends and special shaft.

4. High temperature motor or low temperature motor.

5. Used on plateau or outdoor.

6. Higher power or special service factor.

7. With heater, PT100 for bearings or winding, PTC and so on.

8. With encoder, insulated bearings, or insulated bearing structure.

9. With others requirement.

About Shandong Sunvim Motor Co., Ltd.

Shandong Sunvim Motor Co., Ltd. is invested by Sunvim Group who has ten billions of market value. With 220 million RMB investments, it covers an area of 68,000 square meters, and with total construction area of 53,000 square meters. The company has advanced equipments of more than 400 sets, including manufacturing, testing and supporting facilities. The annual production capacity can reach 3 million kilowatts.

Now, a modern professional enterprise specializes in production, distribution, R&D and customer service of electric motors has been grown up.

And the company is sailing forward under the cultivation of Sunvim Group.

SUNVIM has been well known and being recognized by many customers of the world. Our products are exported to Germany, Italy, Greece, Spain, Belgium, Denmark, South Africa, Slovakia, Australia, Singapore, Indonesia, Malaysia, and Taiwan.
