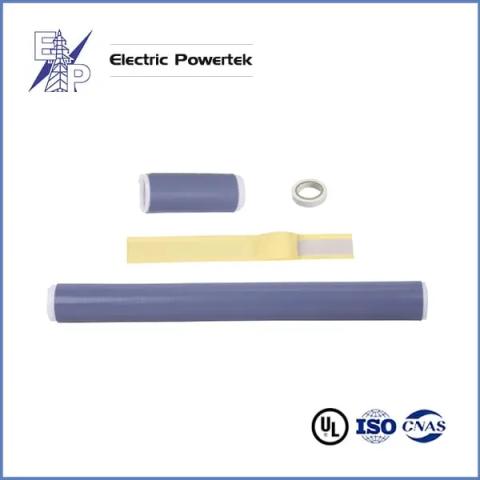

Electric Powerte: 1KV Low Voltage Cold Shrink Cable Terminal

Product Description [https://www.electricpowertek.com/1kv-cold-shrink-four-core-cable-terminal-product/]:

Cold shrinkable cable accessories are components of various cable accessories made of elastomer materials (commonly used silicone rubber and Ethylene propylene rubber), which are molded by injection vulcanization in the factory, then expanded and lined with plastic spiral supports.

Image: https://www.abnewswire.com/uploads/f2a068cede7e83784355b1e96e022bcf.png

Model Meaning:

A-Series code: Series code: N represents indoor terminal, W represents outdoor terminal, and J represents intermediate connection.

B-Product code: LS represents cold shrink cable accessories, SY represents heat shrink.

C-Cable voltage: 1 represents 0.6/1KV, 10 represents 6/10KV~8.7/15KV, and 20 represents 12/20KV~18/20KV.

D-Cable core: 1 represents single core, 2 represents 2 cores, 3 represents 3 cores, 4 represents 4 cores, and 5 represents 5 cores.

E-Cable cross-section:

F-1-10KV: 1 represents 25-50mm, 2 represents 70-120mm, 3 represents 150-240mm, 4 represents 300-400mm

20KV: 1 represents 35-70mm2 represents 95-185mm3 represents 40-400mm

35KV: 1 represents 35-95mm2 represents 120-185mm3 represents 240~400mm

Product Functions And Features:

Cold shrinkage technology: The cold shrink technology makes it have good "flexibility" to effectively avoid cable Thermal expansion caused by high and low load in atmospheric environment operation, and excellent sealing

Cold shrink insulated straight pipe: Insulation, moisture-proof, anti-corrosion, wear-resistant, low melting point of the inner layer, strong resistance to natural aging, high elastic shrinkage, and convenient installation.

Cold shrink terminal head: Imported liquid silicone rubber has high safety performance and simple installation process, which prevents the inhalation of water and moisture, has strong resistance to natural aging, and long service life.

About Electric Powertek: [https://www.electricpowertek.com/]

Electric Powertek Company Ltd. was established in July 28, 2017, located in No.17 Economic and Technological Development Zone, Renqiu City, Hebei Province, China. We mainly research, develop and manufacture electric power line communication line equipments, railway equipments, line fittings, electrical hardwares, communication lines irons, electric iron fittings, ADSS, OPGW, cable accessories, preformed guy grips, preformed interval rods, optical fiber closures, optical fiber distribution frames, fiber optic cable transfer boxes, optical fiber cables, carbon fiber composite conductors, overhead insulated wires, ACSR, hot dip galvanized steel strands, power towers, steel tube rods, steel props, cable trays, plastic products, silicone, rubber and porcelain insulators, lightning arrestors, isolating switches, fuses, transformers, safety instruments, high and low voltage electrical appliances, high and low voltage switch gears. Our factory covers an area of 36000 square meters, providing users with thousands of electric power communication and railway products.

Electric Powertek owns the most advanced production line and high-tech quality control equipments. With scientific administration, professional engineers, highly trained technicians and skilled workers, EP is capable to produce more than 30 million units of electrics in best quality annually. Almost all of our products are produced for overseas market and well sold to over 50 countries. Most of our products have already been granted CE certificates and ISO9001 certificate and have won high reputation around global market.
