Optical Zoom Camera Block Module for UAV Drones | KT&C

KT&C Co., Ltd.'s optical zoom camera module for UAV drones is applicable to a wide range of industries, including the military and defense industries, offering greater operational flexibility.

These camera modules are tailored to meet the unique requirements of aerial photography, surveillance, and other applications where lightweight, compact, and high-performance imaging capabilities are essential.

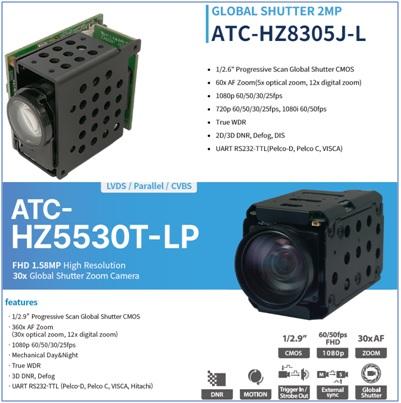

KT&C Global Shutter 2MP ATC-HZ8305J-L and 1.58MP ATC-HZ5530T-LP

The KT&C ATC-HZ8305J-L and ATC-HZ5530T-LP Ultra-Compact Full HD Camera Modules offer amazing imaging possibilities. This cutting-edge camera module provides you with the capabilities you need to get excellent outcomes in your projects, particularly the mini-payload for UAVs and drones.

KT&C ATC-HZ8305J-LN the Full HD auto focus optical zoom global shutter block camera is a modern camera with significant capabilities that provide great performance in numerous applications.

Its ultra-compact design, with a length of only 55 mm and a weight of 41g, houses a powerful 5x optical zoom, making it suitable for current housings and restricted space installations.

With Global Shutter technology, this camera avoids rolling shutter effects and captures images with unparalleled accuracy. Digital Image Stabilization guarantees that footage remains steady even in dynamic environments. Motion detection improves security, and the Image Flip (E-Flip) feature allows for flexible image orientation.

The 1/2.6" CMOS sensor, with 2.3 MP and 1920x1200 resolutions, ensures excellent image clarity. The camera has multiple video outputs, including LVDS and CVBS, and supports 1080p@60 (50fps).

This camera performs well in a variety of lighting circumstances thanks to features such as AGC, WDR, and an AF Optical Zoom lens with 5x optical and 16x digital zoom. Whether it's auto/manual interval shooting or exact presets, the camera allows you to customize the focus and exposure.

The camera's robust design offers digital WDR, 3DNR, and defog capabilities, ensuring high-quality images. The RS232 TTL interface supports smooth communication with a variety of protocols, including VISCA, Pelco-D, and Pelco-P.

This camera gives great performance across a wide range of applications, including security and surveillance, robotics, and video conferencing. Its compact dimensions (28.2x39x54.7mm without case) and lightweight design (approx. 41g without case) make it suited for a variety of settings. This camera can operate in temperatures ranging from -10℃ to +50℃, making it suitable for demanding environments.

KT&C ATC-HZ8305J-L features:
 1/2.6" Progressive Scan Global Shutter CMOS
 60x AF Zoom (5x optical zoom, 12x digital zoom)
 1080p 60/50/30/25fps
 720p 60/50/30/25fps, 1080i 60/50fps
 True WDR
 2D/3D DNR, Defog, DIS
 UART RS232-TTL (Pelco-D, Pelco C, VISCA)

KT&C ATC-HZ5530T-LP features:
 1/2.9" Progressive Scan Global Shutter CMOS
 360x AF Zoom (30x optical zoom, 12x digital zoom)
 1080p 60/50/30/25fps
 Mechanical day and night
 True WDR
 3D DNR, Defog
 UART RS232-TTL (Pelco-D, Pelco C, VISCA, Hitachi)

If you are looking for an optical zoom camera and zoom module for UAV drones, you can find them at KT&C.

Click here to if you are interested in KT&C products.

View more: Optical Zoom Camera Block Module for UAV Drones | KT&C
