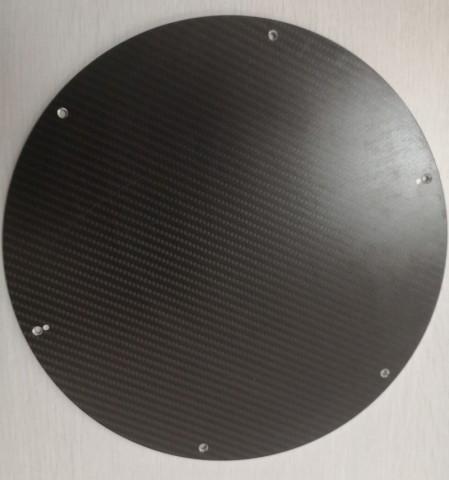

X-ray grid for X-ray image intensifier

When it comes to X-ray image intensifier [https://www.newheekxray.com/image-intensifier/], the installation of the right X-ray grid is crucial for ensuring high-quality imaging. X-ray grids are essential components in radiography, designed to improve image quality by reducing scattered radiation. The choice of X-ray grid for installation in an X-ray image intensifier depends on several factors, including the type of imaging procedures, the energy of the X-ray beam, and the desired image quality.

One of the primary considerations when selecting an X-ray grid for an X-ray image intensifier is the grid ratio. The grid ratio refers to the ratio of the height of the lead strips to the distance between them. Higher grid ratios are more effective at removing scattered radiation but require higher X-ray tube voltages to maintain image quality. For general radiography, a grid ratio of 8:1 is commonly used, while for higher energy X-ray beams, such as those used in fluoroscopy, a grid ratio of 12:1 or higher may be necessary.

Another important factor to consider is the frequency of the grid. Grid frequency refers to the number of lead strips per inch and has a direct impact on image contrast. Higher grid frequencies are effective at removing scattered radiation but may also lead to a decrease in image brightness. For general radiography, a grid frequency of 103 lines per inch is often suitable, while for specialized procedures such as mammography, a higher grid frequency of 178 lines per inch may be required.

The material of the grid also plays a significant role in its performance. Aluminum grids are commonly used for lower energy X-ray beams, while higher energy beams may require grids made of materials such as carbon fiber or stainless steel. The choice of grid material should be based on the energy of the X-ray beam and the specific imaging requirements.

In conclusion, the selection of the right X-ray grid for installation in an X-ray image intensifier is essential for achieving high-quality radiographic images. Factors such as grid ratio, frequency, and material should be carefully considered to ensure optimal performance and image quality for different imaging procedures. By understanding the specific requirements of the imaging system and the intended applications, healthcare professionals can make informed decisions regarding the installation of X-ray grids in X-ray image intensifiers.
