JCSD Alarm Auxiliary Contact: Enhancing Monitoring and Reliability in Electrical Systems

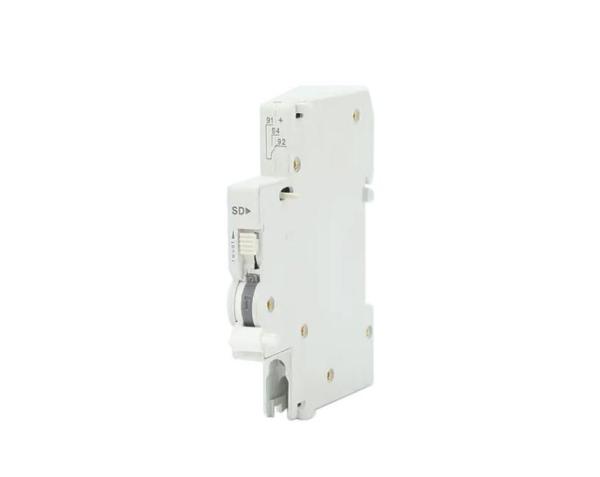

An JCSD Alarm Auxiliary Contact [https://www.jiuces.com/jcsd-alarm-auxiliary-contact-product/] is an electrical device designed to provide remote indication when a circuit breaker or residual current device (RCBO) trips due to an overload or short circuit. It is a modular fault contact that mounts on the left side of the associated circuit breakers or RCBOs, using a special pin. This auxiliary contact is intended for use in various installations, such as small commercial buildings, critical facilities, healthcare centers, industries, data centers, and infrastructures, either for new constructions or renovations. It signals when the connected device trips due to a fault condition, helping to quickly identify and address issues, ensuring the reliability and continuity of electrical systems. Circuit Breaker Accessories like the JCSD Alarm Auxiliary Contact [https://www.jiuces.com/jcsd-alarm-auxiliary-contact-product/] play a crucial role in enhancing the functionality and monitoring capabilities of electrical systems.

Image: https://www.abnewswire.com/uploads/b425d12e39589d0c79fa3f3bb22e2ba6.png

Features of JCSD Alarm Auxiliary Contact [https://www.jiuces.com/jcsd-alarm-auxiliary-contact-product/]

The JCSD Alarm Auxiliary Contact offers several features that make it a reliable and versatile choice for remote indication of fault conditions in electrical systems. Here are key features of this device:

Modular Design

The JCSD Alarm Auxiliary Contact is designed as a modular unit, which means it can be easily integrated into different types of electrical systems. This modular design allows for flexibility and adaptability, as the device can be seamlessly incorporated into residential, commercial, or industrial installations. The modular nature of the auxiliary contact simplifies the installation process and reduces the need for extensive modifications or customizations. It can be easily added to existing electrical setups or included in new installations, making it a versatile choice for both retrofitting projects and new construction.

Contact Configuration

The JCSD Alarm Auxiliary Contact features a single changeover contact (1 C/O) configuration. This means that when the associated circuit breaker or RCBO trips due to a fault condition, the contact inside the auxiliary contact changes its position. This change in position allows the auxiliary contact to send a signal or indication to a remote monitoring system or alarm circuit, alerting the user or operator about the fault condition. The changeover contact design provides flexibility in wiring and integration with different types of monitoring systems or alarm circuits, enabling customization based on the specific requirements of the installation.

Rated Current and Voltage Range

The JCSD Alarm Auxiliary Contact is designed to operate within a wide range of rated currents and voltages. It can handle currents ranging from 2mA to 100mA, which is suitable for most electrical systems and applications. Additionally, it can operate with voltages ranging from 24VAC to 240VAC or 24VDC to 220VDC. This versatility in current and voltage handling ensures compatibility with various electrical systems, minimizing the need for specialized auxiliary contacts for different voltage levels. This feature allows for a single auxiliary contact model to be used in a variety of installations, simplifying inventory management and reducing costs associated with stocking multiple models.

Mechanical Indicator

In addition to providing remote indication of fault conditions, the JCSD Alarm Auxiliary Contact also features a built-in mechanical indicator. This visual indicator is located on the device itself and provides local signaling of the fault condition. When the associated circuit breaker or RCBO trips due to a fault, the mechanical indicator on the auxiliary contact will change its position or display, allowing for quick identification of the tripped device. This local signaling capability is particularly useful in situations where remote monitoring systems are not available or during initial fault diagnosis. It enables maintenance personnel or operators to quickly locate the affected device without the need for additional monitoring equipment or systems.

Mounting and Installation Options

The JCSD Alarm Auxiliary Contact offers flexible mounting and installation options to accommodate different installation requirements. One option is to mount the auxiliary contact directly on the left side of the associated circuit breakers or RCBOs using a special pin. This direct mounting method ensures a secure and reliable connection between the auxiliary contact and the circuit breaker or RCBO. Alternatively, the auxiliary contact can be mounted on a DIN rail for modular installation. This DIN rail mounting option provides flexibility in installation methods and allows for easy integration into existing electrical systems or enclosures. The versatility in mounting options facilitates installation in various settings, such as control panels, switchgear, or other electrical distribution systems.

Compliance and Certifications

The JCSD Alarm Auxiliary Contact complies with relevant industry standards, such as EN/IEC 60947-5-1 and EN/IEC 60947-5-4. These standards are established by international organizations and ensure that the device meets stringent requirements for electrical safety, reliability, and performance. Compliance with these standards is crucial as it provides assurance to users and installers that the auxiliary contact has undergone rigorous testing and meets specific criteria for its intended use. By adhering to these standards, the JCSD Alarm Auxiliary Contact demonstrates its commitment to quality and safety, ensuring that it can be used with confidence in various applications, from small commercial buildings to critical infrastructure installations.

Image: https://www.abnewswire.com/uploads/26eafbfd192a26eba807a735e62440f2.png

The JCSD Alarm Auxiliary Contact [https://www.jiuces.com/jcsd-alarm-auxiliary-contact-product/] is a versatile and reliable device that provides remote indication of fault conditions in electrical systems. Its modular design, changeover contact configuration, wide operating range, mechanical indicator, flexible mounting options, and compliance with industry standards make it a comprehensive solution for various applications. Whether it's a small commercial building, a critical facility, or an industrial installation, the JCSD Alarm Auxiliary Contact offers a convenient and efficient way to monitor and quickly address fault conditions, ensuring the reliability and continuity of electrical systems. Its features and capabilities make it a valuable addition to any electrical installation, contributing to improved safety, maintenance, and overall system performance. Circuit Breaker Accessories like the JCSD Alarm Auxiliary Contact play a crucial role in enhancing the functionality and monitoring capabilities of electrical systems.
