Product Launch: End pieces for piezo actuator plate stacks for easy integration
Noliac introduces end pieces for piezo actuator plate stacks
Providing de-coupling and increasing robustness
The end piece with a spherical cap prevents undesired coupling between subsystems. For example, if the actuator is driving a flexure-guided stage, the end pieces prevent the actuator from inducing unwanted stress in the flexures, and vice-versa. Adding end pieces to an actuator plate stack also increases the robustness of the actuator, since the stainless steel of the end piece can tolerate higher stress concentrations compared to the ceramic. This end piece is also UHV compatible. The added thickness provided by the end piece is also an effective way of spreading the load on the actuator.
Expanding our options to match your requirements
Our options are designed to make the integration of the piezo actuators in the specific applications easier for our customers. We constantly review our options and look for ways to expand the range in order to offer the most extensive selection of options for our customers.
Product range

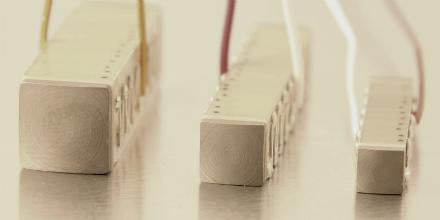

At present, we offer the end piece with these 3 square sections: 5x5 mm, 7x7 mm and 10x10 mm. These products are compatible with:
5x5 mm:
NAC2003-Hxx, NAC2013-Hxx, NAC6025-Hxx
7x7 mm:
NAC2014-Hxx, NAC2021-Hxx, NAC5021-Hxx
10x10 mm:
NAC2015-Hxx, NAC2022-Hxx, NAC5022-Hxx
Features of the end piece for actuator plate stacks
UHV compatible
Low-magnetic (stainless steel)
Spreads the load
Provides de-coupling
Compact design
Read more about the actuator plate stacks and end pieces at http://www.noliac.com/products/actuators/plate-stacks/
Noliac presents a unique proficiency in the field of piezoelectric technology. We design, develop and manufacture the total range of piezoelectric products - from powders to mono- and multilayer components and all the way to finished plug-and-play applications.
Noliac A/S
Hejreskovvej 18
DK-3490 Kvistgaard
Denmark
Att.: Lotte Beck
