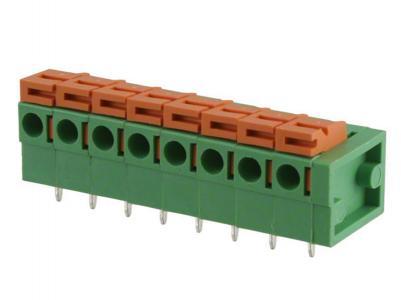

NINGBO KLS ELECTRONIC: 5.08mm Spring Clamp Terminal Block KLS2-142R-5.08

Image: https://cdn.globalso.com/nbklsele/20170930142941142R508_1.jpg

Product Information [https://www.nbklsele.com/5-08mm-spring-clamp-terminal-block-kls2-142r-5-08-2-product/]

MaterialShrapnel: Stainless steel

Pin header: Brass , Tin plated

Housing: PA66 , UL94V-0

Electrical

Rated voltage: 300V

Rated current: 10A

Wire range: 22~16AWG 1.5mm

Contact Resistance: 20 m ohm

Insulation resistance: 500M ohm /DC500V

Withstand voltage: AC2000V /1 min

Mechanical

Temp. Range: -40 degrees C ~ + 105 degrees C

Soldering: 250 degrees C plus-minus 5 degrees C for 5S

Strip length: 9~10mm

Why Choose NINGBO KLS ELECTRONIC [https://www.nbklsele.com/]

1. The main business line of the company include importing and exporting of electronic, elements and products, processing with supplied materials, samples and blueprints,sales & purchase agents, Searching for customer non-standard goods amongst vast products data sheet.

2. KLS, electronics manufacturer, has been adhering to the principle of Our good service,serving the customers with high-quality electronics products,80% of products have UL VDE CE ROHS certificate.

3. KLS sales network covers the whole USA, Germany, UK, Japan, South Korea, South Africa,Russia,Brazil...... more than 70 countries and regions, works closely with local distributors to provide faster response, more comprehensive local service and technical support.

NINGBO KLS ELECTRONIC Superiority

1: One stop purchase,up to 150000 product specifications.

2: Delivery time 7~15 days, On-Time delivery.

3: Help customers find the non-standard products.

4: We can help you reduce purchase 15% cost in the future 3 month.

5: 18 years' industry experience with over $30 million in annual exports.

6: OEM/ODM engineering support,Free development of molds can be enjoyed when the annual purchase amount of a single product is more than 10000 USD.

Quality Guarantee

There exists a professional R&D team that can participate in customized designing , learn about the demands of customers and provide the relevant solutions. KLS can provide customized products designing plan, offer 2D,3D drawings and 3D printed samples quickly to facilitate the structural Simulation verification of early customized products, to speed up the product developing and to cut the cost.

KLS possesses autonomous processing workshop and hundreds of exported processing equipment with the scale of a medium mold processing factory.

The quality terminal is the key component for quality terminal blocks. KLS strictly monitors the stamping process to assure precise metal components. Sheet metal that is between 0.1mm - 4.0mm thick is commonly used in production.

Plastic molds are designed and made by KLS engineers. Housing for insulation purposes or overmolding applications are developed on a regular basis. Different colors and specific plastic materials are available upon request.

Surface treatment is a critical process for terminal blocks because as it helps improve resistance to corrosion and conductibility.Cu, Ni, Sn, Au, Ag and Zn plating is carried out in Dinkle factory frequently and customized plating or partial plating is available upon request. KLS strives to provide quality products while meeting tough environment standards set by the local authorities.
