ITECH Bidirectional power supply IT-M3600 series landed, detonates the low power T&M market

ITECH Bidirectional power supply IT-M3600 series landed, detonates the low power T&M market

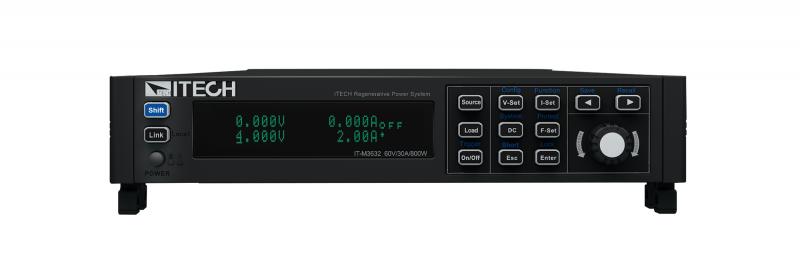

Released by ITECH in May 2020, the brand new series IT-M3600 Regenerative Power System comes with cutting-edge technology which is integrated with engineers' innovative inspiration. It combines a bidirectional power supply and a regenerative electronic load in one. Only a button is needed to switch between the two. This means that it can be used not only as a stand-alone power supply to provide power; but also as an independent electronic load to sink energy and feedback remaining power to the local grid cleanly with its high efficient regenerative rate (up to 90%). IT-M3600 is a pioneering high-tech product. Meanwhile, it is also eco-friendly, helps to eliminate the heat dissipation to a minimum level and save your cost as well. IT-M3600 can fully contribute to environmental protection by reducing CO2 emissions.

Breaking through the traditional technology barriers, IT-M3600 series adopts flexible modular design, which gives it an ultra-compact body of only 1U half-rack. It supports multi-channel output and each channel is synchronous when paralleling. Users can configure each channel according to the test requirements of DUT. IT-M3600 can output up to 16*16 channels, while the traditional instrument only supports 32 channels at most. Moreover, multiple channels can also be connected in parallel to extend the power test range. So it is very convenient to integrate multiple units into system. This enables IT-M3600 to perfect cater the applications like burning test of production line. The test efficiency has increased by two times, which largely saves your energy and cost.

The full range of models supports multiple units stacking and parallel connection by easy design "legs" plug-in. Fit with rack mount kit to achieve the perfect use. The new series will empower the engineers with innovation and implement test technology advancements more quickly and more accurately. With the battery test function, it is especially suitable for multiple groups of battery pack charging and discharging tests and can be operated completely independently, very easy to control. Equipped with ITECH BSS2000 battery simulation software, users can self-define the battery curve by setting common parameters, also can set battery initial capacity to verify the DUT characteristics under different battery status. Meanwhile, BSS2000 has built-in a variety of battery types for users to achieve quick call (lead acid, lithium battery, lithium iron phosphate ...), which can facilitate researchers to further verify the adaptability of different types of batteries and products. During the discharging test, its energy recovery efficiency is up to 90%, which is also helpful in saving electricity costs.

IT-M3600 provides innovative CC / CV priority setting to maximize compatibility with different loop characteristics to be tested, helping companies or universities save on equipment purchasing cost. Under CV priority mode, IT-M3600 can obtain faster voltage climbing speed; switching to CC priority mode, it can realize no overshoot of starting current, which is suitable for semiconductor testing that is sensitive to current, such as for laser chip.

IT-M3600 series constitutes a family of bi-directional, regenerative power system with excellent performance, has high-precision output and measurement, and has made a number of safety designs for testing. It is suitable for various testing in multiple fields such as multi-module battery test, multi-channel power test, product shipment inspection, design verification research.

Features:
- 1U half rack, high power density
- One button switch between source and load
- Bidirectional energy flow between DUT and grid
- High efficient power regeneration up to 90%
- 8 operating mode: CC/CV/CP/CR/CV+CC/CC+CR/CV+CR/CV+CC+CP+CR
- Independent control of multi-channels, implement synchronization or proportional tracking
- CC/CV priority
- Parallel up to 16 units
- PV inverter I-V curve simulation

ITECH ELECTRONIC CO., LTD.
No.918, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586, Taiwan
Tel: +886-3-6684333
Email: info@itechate.com
Web: www.itechate.com

As a professional manufacturer of power electronics testing instruments and systems, ITECH always keeps the spirit of continuous innovation and excellent quality since established. The long term investment on research and development of new technology creates high performance products and reliable user experience.

Every year, there will be at least 6 new products to be launched to the market. Until now, we have brought to the market over 700 products including AC/DC power supply, AC/DC electronic load, power meter, battery IR tester, power system, etc. Meanwhile, ITECH provides you with more than 20 solutions which can be applied to different industry areas, such as automotive electronics, electric vehicle, solar, aerospace, military, education, IoT and so on.
