Easy to integrate and ready to use charging control units for cost-effective charging points

08-19-2011 01:51 PM CET | Energy & Environment

Press release from: INSYS MICROELECTRONICS GmbH

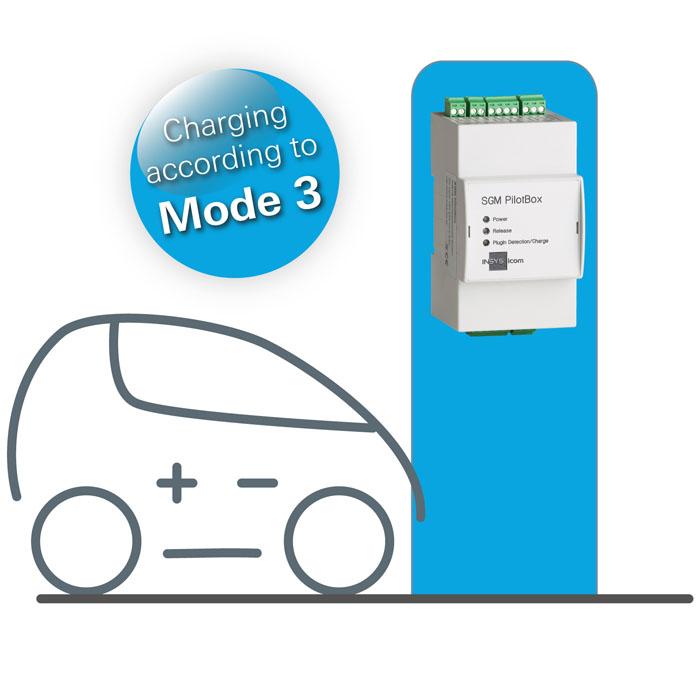

SGM PilotBox from INSYS icom: easy to integrate and ready to use

SGM PilotBox from INSYS icom: easy to integrate and ready to use

The new SGM PilotBox from INSYS icom offers a compact and flexible charging control unit that not only can be used in simple wall boxes but also in intelligent charging station systems or car park systems. The space-saving, compact design combined with detachable screw terminals and DIN rail mounting allow for quick and easy installation. The maximum permissible charging current can be defined in a simple and flexible manner by using two contacts (external wired link). The charging process as well as all safety functions comply with the latest version of the charging standard according to IEC 61851 (Mode 3) and VDE-AR-E 2623-2-2. These standards include generating and monitoring a pilot signal to determine the maximum charging current, detecting the resistance coding in the charging cable, controlling the load protection as well as controlling and monitoring the connector locking and ventilation. In addition to its simple stand-alone function, the SGM Pilotbox can also be used in combination with an additional logic controller (PLC) in order to implement a large variety of charging point concepts. With supply voltages exceeding 13 V, the SGM PilotBox provides the operating voltage for 12 V actuators and therefore makes an additional 12 V power supply unnecessary. Operational reliability is ensured in a variety of ways, for example, with the use of manufacturer-independent connector locking detection, charge rate restriction and a safety shutdown linked to monitoring the charging process.

Founded in 1992, INSYS icom is a well-established technology partner for standardised products and individual solutions in industrial data communication and M2M technology. The company's product portfolio ranges from simple serial modems to integrated mobile radio routers. Customers from various industry sectors, such as electric vehicle charging, energy, traffic engineering, me-chanical engineering, industrial plant construction and the public sector use INSYS icom's durable solutions for various applications such as remote access, alarm messages and monitoring proc-esses, and the efficient secure integration of systems. INSYS icom products are available in all types of data transfer technology with a wide range of features as DIN rail versions, in 19" racks, as tabletop units and as board versions for easy integration. For many products, customers can use a freely available LINUX Sandbox to program their own applications, and use preset demo images for easy adaptation. INSYS icom’s technical support team helps customers find solutions to individual requirements and works in close cooperation with the development department regarding customer inquiries for new developments in the areas of hardware, applications or technology, thereby enabling clients to act quickly and efficiently.

INSYS MICROELECTRONICS GmbH
Waffnergasse 8, D-93047 Regensburg, Germany
info@insys-icom.de, www.insys-icom.de
Presscontact: Barbara Gallert, bgallert@insys-tec.de

This release was published on openPR.

Permanent link to this press release:

Copy
Please set a link in the press area of your homepage to this press release on openPR. openPR disclaims liability for any content contained in this release.

You can edit or delete your press release Easy to integrate and ready to use charging control units for cost-effective charging points here

News-ID: 188306 • Views:

More Releases from INSYS MICROELECTRONICS GmbH

INSYS icom extends partner program providing customers with integrated solutions …
M2M applications are often based on various components, services, and infrastructures from different suppliers. These include, for instance, secure data transmission links, SIM cards and SIM card management, data hubs, visualisation, and most importantly the integration into customer-specific IT systems. Looking for suitable partners and coordinating their work takes time and costs money. Extending its “Excellence in M2M” partner program, INSYS icom, technology leader in M2M solutions, unites numerous service
INSYS aero and Röder Präzision Announce Cooperation on Unmanned Systems
INSYS aero, supplier of avionics, control, communications and security solutions for the aerospace industry, and Röder Präzision GmbH, manufacturer of unmanned system platforms on sea and in the air, agree upon a close cooperation. Unmanned systems are preferably used in military, but also increasingly in civil areas. They assume surveillance and reconnaissance missions. Their strengths are based on cost reduction and safety aspects. They can operate in a large area and

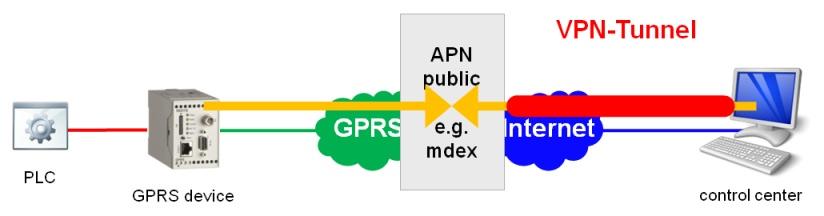

Mobile data communication – Alternative solutions for leased lines
