A flexible cost effective and green solution-The Machine Maker

Danone Waters optimises handling on the loading platforms at its EVIAN® plant
Danone Waters has opted to make handling pallets of Evian water on platforms —before they are loaded onto trains— safer and more streamlined, using Interroll heavy-duty gravity conveyors.
At the Publier site in the Haute-Savoie department of France’s Amphion-les-Bains region, the largest natural mineral water bottling plant in the world has had a makeover! This historic Danone site spans 130,000 square meters. At the end of the line, the largest privately-owned railway station in France manages 65 percent of production, with the rest loaded onto the many trucks lined up in front of the plant. Every day, seven million bottles are shipped on the equivalent of 7,000 pallets. It takes robust and well-oiled logistics to maintain this pace. No malfunction can be allowed to interrupt this constant flow.

A simple solution to a complex problem

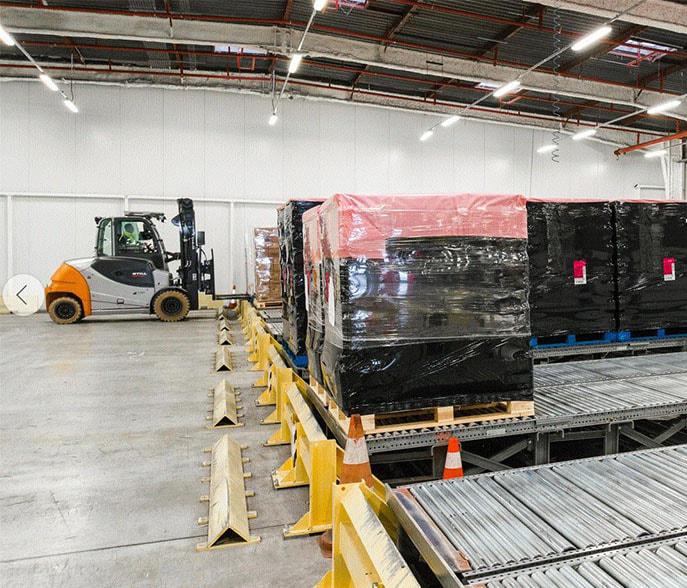

At the end of the production line, automated guided vehicles (AGVs) transport pallets weighing up to 1,200 kg to the railway loading platforms. These ultra-modern AGVs can move two pallets at once. This is where Interroll's solution comes into play. Accurate to the nearest millimeter, the AGVs place the pallets of water bottles onto heavy-duty gravity conveyors. Sixteen lanes, holding up to 27 pallets, can easily handle the pace. The gravity lanes direct the pallets to the forklift trucks which pick these up four by four to be loaded onto waiting trains. Despite its apparent simplicity, this solution boasts advanced technologies and Interroll's extensive expertise. Firstly, to ensure the safety of the installation, operators and goods, Interroll's MSC 80 Magnetic Speed Control rollers maintain a constant pallet speed of 0.3 meters per second. At the end of the line, and for enhanced operator safety and comfort, a mechanical separation solution enables four pallets to be picked up simultaneously for efficient loading.

A flexible, cost-effective and green solution
Preparing for this project required Interroll to operate its testing zone in La Roche-sur-Yon at full capacity. In fact, EVIAN® uses no fewer than 12 different types of pallets for its global markets. The Interroll solution was technically assessed using a series of tests (e.g., the speed of the idler rollers, the number of brake rollers required, the position of the separators); Interroll's expertise also enabled the company to work with pallet manufacturers to optimize pallet construction and design, to ensure that the pallets rolled optimally on Interroll's heavy-duty gravity conveyor solution.

The fact that the design of the conveyor solution uses gravity means that the installation does not need to be powered. Apart from a few wear parts, it is also impressively maintenance-free. The operating costs for EVIAN® are almost zero. Interroll's gravity conveyors generate no carbon dioxide (CO2) emissions, which is important for a site which in 2017 became Danone's first carbon-neutral site.

Everything is flowing smoothly — naturally
One year after commissioning, and after a few adjustments, Interroll's solution has already been tested by some 520,000 pallets. Danone Waters and Evian in particular now appreciate the simplicity and flexibility of Interroll's application in a very high-tech environment subject to very demanding industrial working conditions. The gravity pallet conveyor — which may have seemed rather rustic at first glance — ultimately provided EVIAN® with a cost-effective and long-term solution for the future development of the brand!
