Arsenal Testhouse presents SUMIT Technologies

Hong Kong, 14.06.2018 (Arsenal Testhouse GmbH)

If you've visited our booths at the different shows worldwide the last 2 years, it would be hard to miss the announcements of our CEO Thomas Sumberger about launching pioneering test tools.

As you might have gathered from these information, this is not just another test tool introduction. We performed a deep analysis with many design engineers working for chip, card and reader manufacturers worldwide and concluded that meeting those needs would require a completely new approach.

That analysis led to a large and extensive development effort. And here we are with a complete new Test tool and service provider : SUMIT Technologies Ltd. with their Headquarter in Hong Kong.

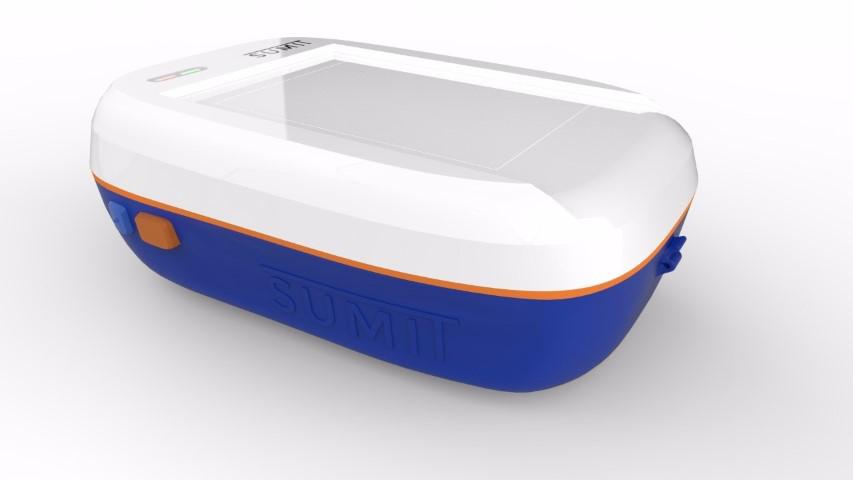

Starting its broad product range with the launch of the SUMIT AntennaMatch, a innovative portable one port network analyzer with integrated contactless reader and a built-in antenna for fast characterisation of cards, inlays and tags. It is the first of four products, which will be released all in 2018.

Having a frequency range of 10 kHz to 35MHz and a output power of -20dBm to +10dBm makes this tool a powerful and reliable companion. An additional SMB connector makes it possible to connect and characterise reader antennas as well.

The goal (and we think we achieved it) was to give our customers unprecedented flexibility and adaptability to the quality check at hand. Many common application require only a simple and easy solution, which can be used by production engineers without having the knowledge of testing. The integrated Bluetooth gives you the option to set all requirements via the mobile app and capture and save the measurement directly on your device.

SUMIT AntennaMatch at glance

Frequency range: 10Khz– 35 MHz

Minimum Frequency step size: 1Hz

Measurement time @ 10 KHz resolution: max. 50us

Marker & Marker Seach: Min/Max/specific Value Search, Statistics view

Output Power: -20dbm (unloaded) until +10dBm (loaded)

Interface: Bluetooth / USB /Ethernet (with USB adapter) for selecting and save limits

Measurement data output: option available in XLS, CSV

Power: USB / Battery up to 10 hours

The future of quality testing is here

We hope you are excited about the AntennaMatch as we are. It the first quality tool capable of meeting today's quality assurance challanges in the card and reader industry and with the performance and versatility to meet the challenges of the future as well. For more information about contactless conformance and quality testing visit www.arsenal-testhouse.com, for test tools we keep you updated at www.thesum.it.

Arsenal Testhouse is the world‘s only certification institute for contactless MIFARE smart card systems and offers reliable functional testing and certification of such systems based on MIFARE from a technically competent, and above all, independent partner. With its experience in certifying contactless transmission via an RF interface, the MIFARE Certification Institute of Arsenal Testhouse substantially contributes to the functionality of smart card systems worldwide. This results in over 200 certified cards, inlays and readers to date. The experience and results gained will be integrated into further standards development by national and international committees, making the MIFARE Certification Institute a major contributor to the worldwide compatibility of these systems.
