piezo - nanopositioner nanoMIPOS 400 CAP for micro objectives now available with digital performance

09-05-2008 04:28 PM CET | Business, Economy, Finances, Banking & Insurance

Press release from: piezosystem jena GmbH

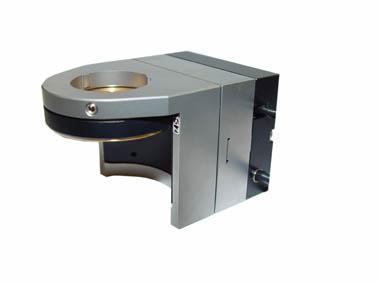

nanoMIPOS 400 CAP

nanoMIPOS 400 CAP

piezosystem jena has expanded the series MIPOS with the introduction of the nanoMIPOS400 CAP. For the first time ever, this large range of outstanding micro-objective focusing devices will be available in a digital version.

The nano positioner provides a travel of 450 microns with nanometer resolution.
The special bidirectional nanoX flexure design allows for a high dynamic and extremely accurate guidance. The integrated positioning sensors guarantee long-term stable positioning, free of drift, and hysterisis.

The digital micro objective nanopositioner is operated with digital electronics, which offer the excellent advantages of the ASI- and ASC-function. The ASI-function (Automatic Sensor Identification) allows piezo actuators with positioning sensors to be completely interchangeable with control electronics of the same type. Recalibration of the system is no longer necessary.
The ASC-function enables an identification of the nanoMIPOS 400 CAP and its calibration information. This data is stored in the positioner itself, and is immediately activated after the electronics have been changed. With an integrated function generator, which contains standard values for frequency, amplitude, offset and so on, functions such as: sine, triangle can be implemented. Depending on the application the digital controller allows in-situ adjustment of the PID parameter, notch filter parameter and rise limitation. So the nanoMIPOS 400 CAP can be optimized in different “trial and error” scenarios easily.

With these outstanding features the system satisfies the high precision demands in biology, medicine and laser technology. Due to the excellent mechanical features, the nanoMIPOS 400 CAP can be easily adapted in upright and inverse microscopes.

As with all MIPOS systems from piezosystem jena, the nanoMIPOS can be used with any thread types from W0.8x1/36, to M25x0.75, and even M32x0.75 with the use of a thread-flex-adapter. This feature emphasizes the universal applications of the MIPOS-systems.

piezosystem jena GmbH
Pruessingstrasse 27
07745 Jena
Tel:+49 3641 66880
Fax: +49 3641 668866
sales@piezojena.com
http://www.piezojena.com

piezosystem jena is a world leading company in the development, design and engineering of piezoelectrical actuator-based positioning systems for micro- and nanopositioning and nano-automation. In addition to the positioning stages the company also offers optical fiber switches as well as the support electronics.
The extensive experience in developing and manufacturing a diverse range of nanopositioning systems enables us to provide special systems and also OEM manufacturing.
The piezo actuators and positioning stages are characterized by a unique precision in the range of nanometer, generate forces of serveral thousand Newton and realize precise positionings in micro seconds.
