Pressure switches and differential-pressure switches for gas-explosive zones

Press release from: Beck GmbH Druckkontrolltechnik
Type 901 pressure switches, with their different pressure connections and membrane materials, can be adapted flexibly to the most varied applications. Now they are also suitable for use in explosive zones (II 1/2 G  and II 2 G)
Type 901 pressure switches, with their different pressure connections and membrane materials, can be adapted flexibly to the most varied applications. Now they are also suitable for use in explosive zones (II 1/2 G and II 2 G)


Proven technology now with ATEX licence

Not only do explosions often cause severe damage to property – not infrequently, they lead to personal injuries and invalidity. Obviously, as far as possible, such dangerous situations must be prevented in the first place. In some areas of industry, such as the chemicals sector, however, ignitable gas or air mixtures are frequently inevitable. Here, it is absolutely essential to avoid sources of ignition. Technical devices are one such potential source. If it is nevertheless impossible to dispense with them, they must be certified for so-called explosive zones. The ATEX product guideline 94/9/EG contains specifications for their construction (ignition-protection type) and quality management.

Pressures have to be monitored, even in explosive zones. The pressure-monitoring technology experts at Beck GmbH, Steinenbronn, have therefore submitted their Type 901 pressure switch and Type 930.8x differential-pressure switch for a type inspection. At the same time, the QM system (according to EN 13980) was also inspected with regard to the production of these units, and certified accordingly. The Series 901 pressure switches with identifier II 1/2G Ex ia IIB T4 are now suitable for use in Explosive Zones 0, 1 and 2 with gas atmospheres, or with identifier II 2G Ex ia IIC T4 for Zones 1 and 2. The Series 930.8x differential-pressure switches can also be used in gas atmospheres, and are authorised to bear the ATEX identifier II 2G Ex ia IIB T4 in future. All units are executed in “intrinsically safe” ignition-protection type, and have been categorised in Temperature Class T4 and Explosion Group IIB or IIC.
Even after certification, the Type 901 pressure switches display convincing, individual adaptability (picture). For instance, the units are available with pressure connections in different materials, shapes and sizes. There is also a wide selection of materials for the membranes. Switching-pressure ranges can be set just as individually as switching points. The pressure switches can thus be adapted to almost any customer-specific application. The areas of application range from sewage technology, in which resistance to aggressive media is a challenge, to food and medical technology, in which strict hygiene guidelines must be observed.

The same applies to the Series 930.8x differential-pressure switches, which have been proven in building automation, with their switching-pressure ranges adjustable between a minimum of 20...2000 Pa and maximum of 1000...4000 Pa, and switching differentials of between 10 and 250 Pa. They, too, will in future open up new areas of use with their ATEX certification. Examples are the monitoring of industrial cooling-air circuits, flow monitoring in ventilation ducts, overheating protection for air heaters, or the control of air and fire-protection flaps.

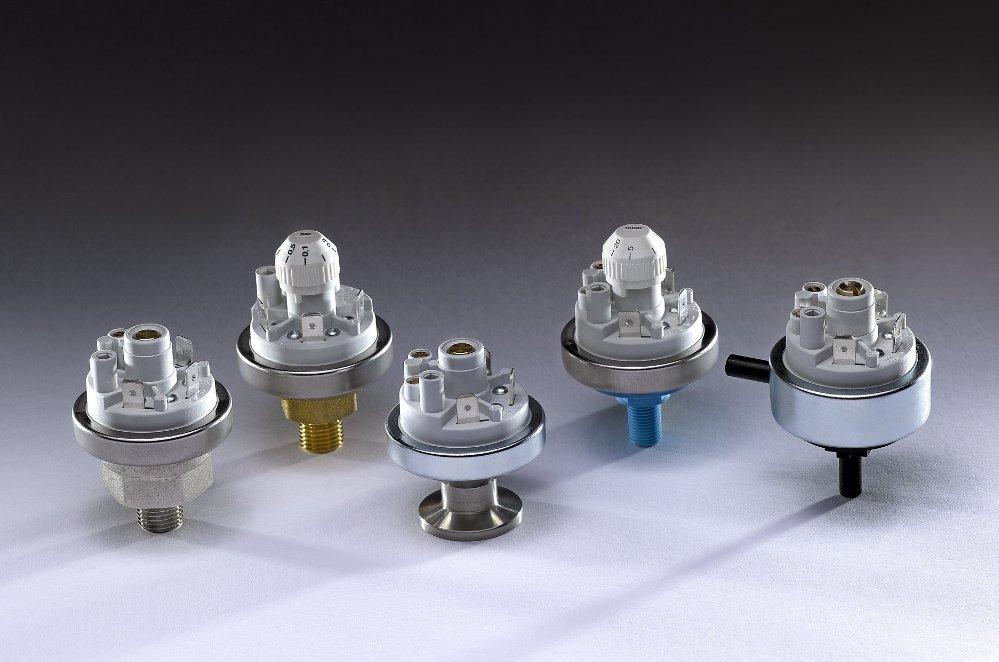

Picture Type 901 pressure switches, with their different pressure connections and membrane materials, can be adapted flexibly to the most varied applications. Now they are also suitable for use in explosive zones (II 1/2 G and II 2 G)

All photos: Beck GmbH Druckkontrolltechnik

Characters: approx. 3,100 without figure captions
Use free of charge; please send readers’ questions directly to Beck GmbH Druckkontrolltechnik
Text (bck005) and photos in the Internet: http://pool.rbsonline.de

Beck GmbH Druckkontrolltechnik
P.O. Box 1131
71140 Steinenbronn, Germany
Internet: http://www.beck-sensors.com
e-mail: sales@beck-sensors.com

Editorial contact:
Hans-Peter Funk, e-mail: funk@beck-sensors.com
Telefon: +49 7157 5287-0, Fax: +49 7157 5287-83

Beck – over fifty years of specialisation in pressure monitoring

Walter Beck laid the foundation stone for today’s company with a water level indicator for domestic washing machines. Shortly afterwards, he developed a diaphragm pressure switch for monitoring water levels in the first fully-automatic washing machines. Following a phase of vigorous growth, Beck became one of the world’s leading manufacturers of pressure switches for large domestic appliances.

In the mid-1970s, Beck developed new markets, extending its customer base by adding numerous industrial application areas. In 1985, Beck presented a differential pressure switch for fan monitoring in gas heating appliances.

At the end of the 1980s, Beck established itself in the ventilation and air-conditioning market with an adjustable differential pressure switch for monitoring air filters and fans. In 2000, Beck rounded off its range of products for this meanwhile important market by adding a transmitter for differential pressure, which further enhanced the company’s market position worldwide.

At the same time, Beck still regards itself as a flexible niche provider of customer-specific pressure switches and pressure transmitters for original equipment suppliers in many different sectors.

This great diversification in sales markets can be regarded as an important factor in the company’s international market success.
