How Bottom Loading Arms Minimize Spillage and Vapor Emissions

In the modern energy and chemical logistics landscape, the dual imperatives of environmental stewardship and operational safety have shifted industry standards toward more closed-loop, efficient handling technologies. Lianyungang Hechang Machinery Co., Ltd., a global leader in fluid transfer solutions, is highlighting the critical role of advanced bottom loading technologies in achieving these goals. By deploying the Bottom truck loading arm for fuel tankers, terminal operators can drastically reduce hazardous vapor emissions and eliminate the risk of product spillage, ensuring compliance with increasingly stringent global environmental regulations.

The Transition from Top to Bottom Loading
Historically, top loading was the industry standard, involving an operator climbing onto a tanker and inserting a downfill tube through an open manhole. However, this method inherently exposes the product to the atmosphere, leading to significant Volatile Organic Compound (VOC) emissions and increasing the risk of static electricity discharge.
Lianyungang Hechang Machinery Co., Ltd., established in 2009, has been at the forefront of the transition to bottom loading. With over 6,000 successfully completed projects, the company has demonstrated that moving the connection point from the top of the tank to the ground level-utilizing specialized bottom loading arms-is the most effective way to create a "closed-loop" system that protects both the environment and the operator.

Mechanism of Emission Reduction: The Closed-Loop Advantage
The primary source of emissions during fuel transfer is the displacement of vapors as the tank fills. In a traditional top-loading scenario, these vapors escape freely into the air.
1. Integrated Vapor Recovery Systems
Hechang's bottom loading arms are designed to work in tandem with vapor recovery lines. As the fuel enters the bottom of the tanker, the rising liquid level pushes the existing vapors through a dedicated return line. This closed-loop prevents VOCs from escaping into the atmosphere, a critical factor for refineries and chemical industrial parks located near urban centers.
2. Submerged Loading to Prevent Turbulence
When liquid is dropped from the top of a tank (splash loading), it creates turbulence and mist, which accelerates vapor generation. Bottom loading arms facilitate "submerged loading," where the product enters from the base and rises smoothly. This minimizes agitation, keeps the liquid surface calm, and significantly reduces the volume of vapor created during the process.

Engineering Out the Risk of Spillage
Beyond emissions, liquid spillage represents a direct financial loss and a severe environmental hazard. Hechang Machinery integrates several fail-safe technologies into their loading arm designs to ensure zero-leakage performance.

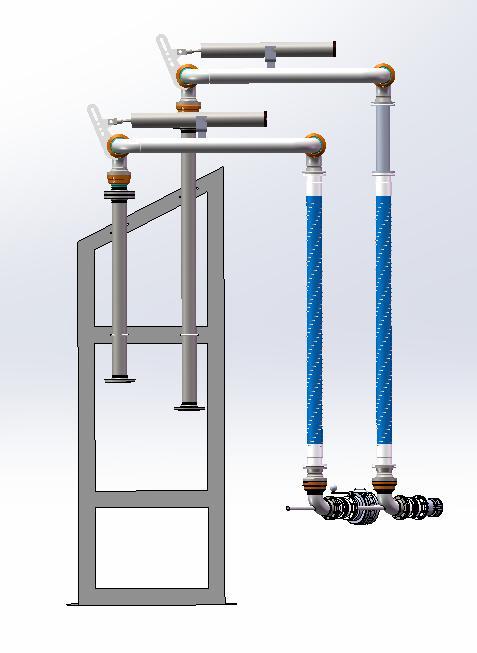

1. Dry-Disconnect Couplers
The "business end" of a Hechang bottom loading arm features high-performance API couplers. These are designed for "dry-disconnect" operation, meaning that when the arm is uncoupled from the truck, the internal valves close before the connection is broken. This ensures that only a few drops of product-rather than a significant spill-are exposed.
2. Articulated Swivel Joints and Precision Balance
A major cause of leaks in traditional hose systems is the stress placed on connections due to misalignment. Hechang's loading arms utilize high-precision swivel joints that offer a full range of motion. These joints allow the arm to follow the "settling" of the truck as it becomes heavier during loading, maintaining a perfect, tension-free seal at the connection point throughout the entire cycle.
3. Quantitative Loading Control
By integrating the loading arms with Hechang's proprietary quantitative loading control systems, the risk of overfills is virtually eliminated. The system monitors the exact volume of fluid transferred and automatically shuts the primary valve before the tank reaches maximum capacity, providing a digital safety net that complements the mechanical hardware.

Enhanced Operator Safety and Operational Efficiency
The shift to bottom loading is not merely an environmental choice; it is a profound improvement in workplace safety.

Ground-Level Operation: Operators no longer need to climb on top of tankers, eliminating the risk of falls from height-one of the leading causes of injury in terminal environments.
Static Electricity Mitigation: Bottom loading significantly reduces the generation of static electricity compared to splash loading, which is vital when handling high-volatility fuels and chemicals.
Faster Turnaround Times: Hechang's intelligent auto-alignment and quick-connect features allow operators to connect multiple arms simultaneously. A single operator can manage several loading bays from a safe distance, increasing the throughput of the terminal without compromising safety.

Hechang's Full Life-Cycle Service Commitment
Lianyungang Hechang Machinery Co., Ltd. does not simply manufacture hardware; it provides comprehensive system solutions. The company's "Full Life-Cycle" approach ensures that the environmental and safety benefits of bottom loading arms are maintained for decades.
Engineering Design and Customization
Every terminal has a unique footprint. Hechang's engineering team provides technical consulting and custom design to ensure that loading arms-whether standard, gantry, or cryogenic LNG types-fit perfectly within the existing infrastructure of oil and gas terminals or tank farms.
Inspection, Testing, and Maintenance
To guarantee the continued minimization of emissions, regular inspection is required. Hechang provides on-site installation guidance and rigorous testing to ensure that all seals and vapor return systems are airtight. Their after-sales maintenance programs include periodic swivel joint servicing and coupler seal replacements, ensuring the system remains "leak-free" throughout its service life.

Global Impact and Industry Application
To date, Hechang has served more than 2,000 domestic and international clients. Their products are essential components in:
LNG Receiving Stations: Where cryogenic integrity is paramount.
Chemical Industrial Parks: Where zero-emission protocols for hazardous substances are strictly enforced.
Refineries and Storage Terminals: Where high-volume throughput demands the highest levels of reliability.
By choosing Hechang's bottom loading solutions, companies are investing in a future where energy logistics are cleaner, safer, and more profitable. The integration of pneumatic, electric, and hydraulic intelligent systems further positions Hechang as a leader in the "Smart Terminal" revolution.

Conclusion: Setting the Standard for Fluid Transfer
As the global energy industry moves toward a "Net Zero" future, the technology used at the loading rack will be under the microscope. Lianyungang Hechang Machinery Co., Ltd. continues to prove that with the right engineering, the industry can eliminate the trade-off between efficiency and environmental protection. Through the use of advanced Bottom truck loading arms, Hechang is helping the world's leading energy companies minimize their footprint while maximizing their operational potential.
For detailed technical specifications, project case studies, or to request a consultation for your terminal's loading system requirements, please visit our official website.
