What is a relay module? A detailed explanation of its meaning, function, and uses.

A relay [https://www.simplybuypower.com/tesys-deca-overload-relay/] module is a small electronic device [https://www.simplybuypower.com/contactors-overloads/] that allows low-power signals to control high-power equipment. It works as a bridge between a control system-such as a PLC, Arduino, or microcontroller-and the high-voltage devices it needs to operate. Understanding relay module meaning helps you design safer, more efficient automation systems.

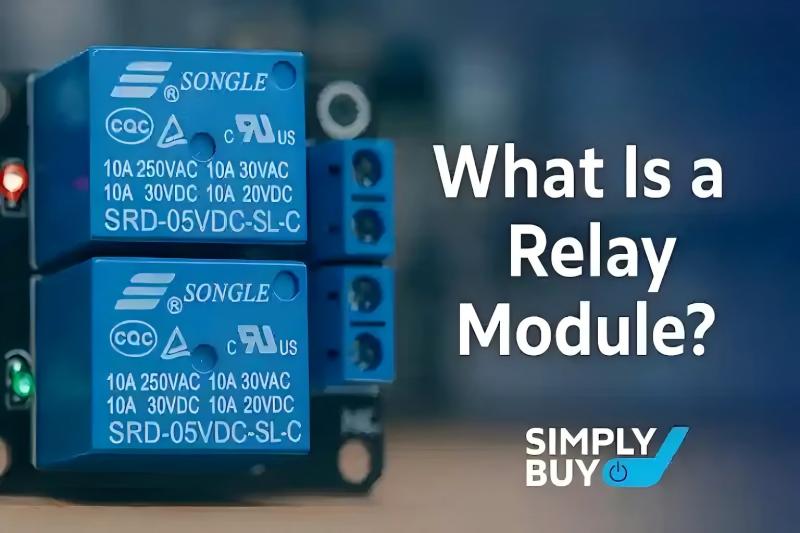

Image: https://ecdn6.globalso.com/upload/p/165/image_other/2025-11/1111-1.jpg

What Does a Relay Module Do? (Meaning)

A relay module functions as a remote-controlled electrical switch. Using a tiny input signal, it can turn large electrical loads on or off, such as motors, lighting circuits, fans, pumps, and industrial machines. This prevents sensitive controllers from being directly exposed to high voltage or high current.

What Is the Function of a Relay Module?

The primary function of a relay module is safe switching. It uses a low-voltage control signal to operate high-power devices, electrically isolates control circuits from load circuits, protects controllers and microcontrollers from damage, and provides reliable ON/OFF control for automation.For example, a 5V microcontroller can safely switch a 220V AC lamp through a relay module.

Difference Between a Relay and a Relay Module

A relay is only the switching component, while a relay module includes additional electronics such as protection diodes, transistors, indicator LEDs, terminal connectors, and sometimes optocoupler isolation.A relay module is easier and safer to use in automation projects because wiring, protection, and driving circuits are already built in.

Purpose of a Relay

The purpose of a relay is to control a high-power circuit using a low-power signal. You will find relays in motor starters, HVAC systems, industrial machines, electrical control panels, security systems, and smart home devices. They improve safety, reduce risk, and increase system reliability.

How Does a Relay Module Work?

Image: https://ecdn6.globalso.com/upload/m/image_other/2025-11/1.webp

Inside each relay module are an electromagnetic coil, switching contacts (NO/NC), and a spring. When the coil receives voltage, a magnetic field closes or opens the contacts, powering the connected device. When power is removed, the spring returns the contacts to their normal position.This allows automation systems to control powerful loads without direct electrical connection.

How to Use a Relay Module

Connect the module's input pins to a controller (Arduino, ESP32, PLC, etc.), then connect COM / NO / NC terminals to your load. After powering the module, send a control signal and the relay will switch the device ON or OFF.Example: A microcontroller receives a Wi-Fi command from your phone, the relay activates, and your appliance turns on.

How to Test a Relay Module

Apply power and a control signal - you should hear a "click."With a multimeter, check continuity:

When ON right COM and NO have continuity

When OFF right COM and NO are open

If switching and continuity change correctly, the relay module is working.

Are Relays and Relay Modules the Same?

No. A relay is a single component. A relay module includes that relay plus the driving and protection circuitry, making it safer and more convenient for automation systems.

Power Relay Module Applications

Power relay modules are used in motor control, HVAC, compressors, industrial automation, pumps, valves, and heaters. In larger systems, they improve reliability and protect control boards from damage.

For motor overload protection, ABB TF thermal overload relays work seamlessly with relay modules:

Control Voltage: 690V AC

Rated Operating Current: 42A, 65A, 96A, 140A

Suitable Contactors: AF09 - AF140

Conclusion

Relay modules make automation safe, flexible, and efficient. They allow low-power control systems to manage high-power loads, making them essential in both home electronics and industrial applications. Whether building a DIY project or upgrading factory equipment, choosing the right relay module ensures reliable performance and long service life.
