Versatile Depth-Sensing Innovation with TOF 3D Depth Camera | Cube-eye

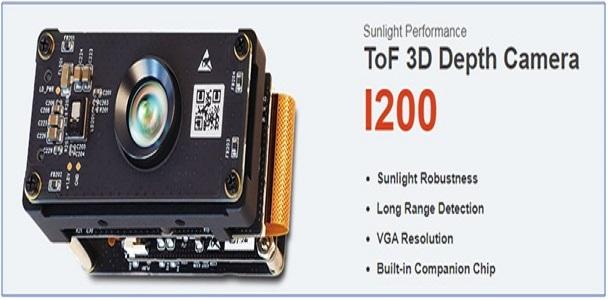

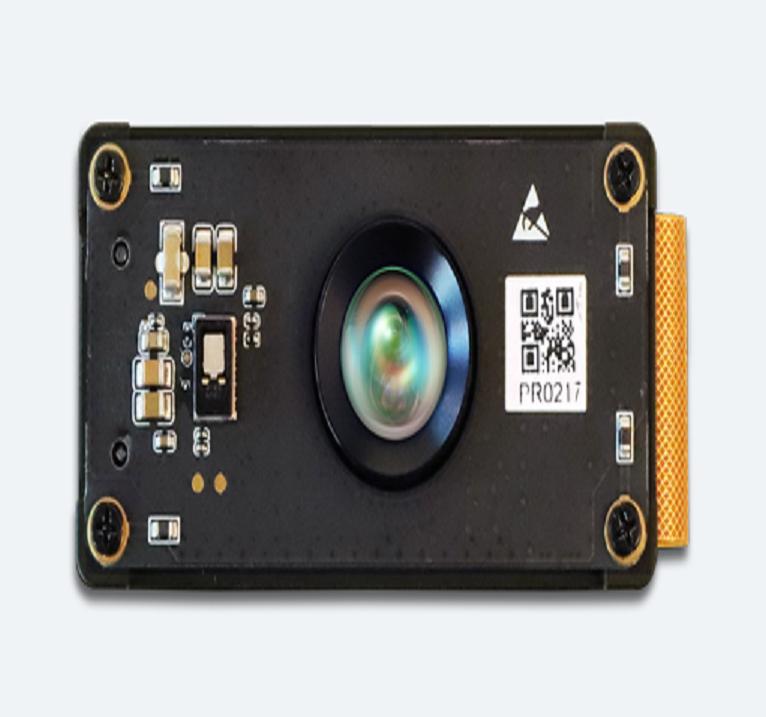

Key Features and Specifications
The device is designed to be optimally suited for bright, sunlight-rich environments, ensuring precise depth sensing in outdoor settings.
The device operates within a range of 0.25 to 7.0 meters, offering flexibility in various use cases.
The device captures high-resolution depth maps (640 x 480 pixels) for precise imaging.
Advanced processing minimizes system load and ensures efficient and accurate data delivery.
The device uses a VCSEL 940nm illuminator with a 4 W power output, achieving a field of view of 90° horizontally and 68° vertically.
It outputs detailed data such as depth, amplitude, and point cloud information, ensuring precise measurements.
Interfaces and SDK
It is compatible with MIPI CSI-2 and USB interfaces, the camera operates at a frame rate of 15fps for smooth performance. Its comprehensive SDK supports USB drivers for Windows and Linux, APIs for C++ and Python, and platforms like Linux and Android.
Design and Efficiency
The USB version measures 52mm x 25.3mm x 35.5mm and weighs 41.5g, while the MIPI version weighs 35.2g. Its compact design ensures easy integration, consuming an average of 2.5W (peak 15W) with a standard 5VDC input. Certified for eye safety, it is suited for indoor and outdoor environments.
If you are looking for a TOF 3d depth camera, you can find them at Cube-eye.
Click here if you are interested in Cube-eye Cameras.
View More: Versatile Depth-Sensing Innovation with TOF 3D Depth Camera
-
From April 24 to 26, 2025, WORLD IT SHOW exhibition for machine vision will be held in South Korea.
meerecompany will be attending this exhibition during this period.
If you have even the slightest interest in machine vision technology, visit meerecompany's booth at the WORLD IT SHOW 2025 exhibition to experience cutting-edge machine vision technology!
- Exhibition Name: WORLD IT SHOW 2025
- Exhibition Dates: April 24 to 26, 2025
- Exhibition Site: https://www.worlditshow.co.kr/eng/main/main.php
- Exhibition Address: (COEX) 513 Yeongdong-daero, Gangnam-gu, Seoul-si, Republic of Korea
- meerecompany Booth: CO112
Gangnam-gu, Seoul-si, Republic of Korea
Cube-eye is a leading innovator in 3D imaging and depth-sensing solutions, known for its advanced technologies like the Cube-eye I200 ToF 3D depth sensor camera.
