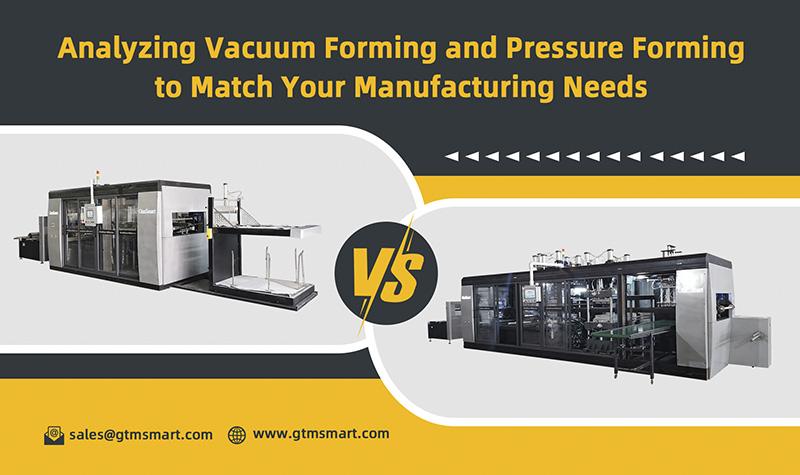

Analyzing Vacuum Forming and Pressure Forming to Match Consumers' Manufacturing Needs

When selecting the right thermoforming process for plastic container production, understanding the distinctions between vacuum forming and pressure forming is critical. Both methods transform thermoplastic sheets into functional products like egg trays, fruit containers, food packaging, and industrial containers. However, their unique capabilities, material compatibility, and application suitability make them better suited for specific manufacturing scenarios.

Image: https://ecdn6.globalso.com/upload/p/1194/image_product/2025-02/analyzing-vacuum-forming-and-pressure-forming-to-match-your-manufacturing-needs.jpg

Vacuum Forming: Simplicity and Efficiency

Vacuum forming [https://www.gtmsmart.com/plastic-vacuum-forming-machine-product/], also referred to as thermoforming or vacuum molding, involves heating a thermoplastic sheet until pliable and then shaping it using vacuum pressure. The process begins by clamping the heated sheet over a mold. A vacuum then removes air between the sheet and the mold, pulling the material into the desired shape. Once cooled, the formed plastic is trimmed to final specifications.

Key Features of Vacuum Forming:

Material Compatibility: Works with PET, PS, PVC, and other thermoplastics.

Applications: Ideal for producing lightweight, single-layer containers such as egg trays, clamshell packaging, and shallow fruit containers.

Advantages:

Lower tooling costs due to simpler molds.

Faster cycle times for high-volume production.

Energy-efficient operation with minimal waste.

Limitations:

Less detail resolution compared to pressure forming.

Thinner wall thicknesses may limit structural strength.

This method is widely favored for projects prioritizing cost-effectiveness and rapid turnaround, particularly when intricate surface textures or deep draws are not required.

Pressure Forming: Precision and Durability

Pressure forming [https://www.gtmsmart.com/plc-pressure-thermoforming-machine-with-three-stations-product/]builds on the vacuum forming process by introducing compressed air above the heated plastic sheet. This dual-pressure system (vacuum below and air pressure above) forces the material into tighter contact with the mold, capturing finer details and achieving sharper edges.

Key Features of Pressure Forming:

Material Compatibility: Compatible with PP, PS, PLA, PET, and biodegradable options like PLA.

Applications: Suited for complex geometries, textured surfaces, and heavy-duty containers requiring enhanced durability, such as industrial packaging or reusable food containers.

Advantages:

Superior surface finish with realistic textures (e.g., wood grain, leather).

Consistent wall thickness and improved structural integrity.

Tolerates deeper draws and undercuts.

Limitations:

Higher tooling costs due to reinforced molds.

Slightly slower cycle times compared to vacuum forming.

Pressure forming is the go-to choice for manufacturers needing high-end aesthetics or functional parts that withstand frequent use or harsh environments.

Choosing Between Vacuum Forming and Pressure Forming

To determine which method aligns with your project, consider the following factors:

1. Design Complexity:

Vacuum forming suits simple, shallow designs.

Pressure forming excels for intricate shapes and textured finishes.

2. Material Requirements:

PLA and PP are better handled by pressure forming due to their higher melting points.

PET and PVC perform well in both processes but may achieve better detail under pressure.

3. Production Volume:

Vacuum forming is cost-effective for large batches of standardized items.

Pressure forming justifies its higher upfront costs for premium or custom products.

4. Budget Constraints:

Opt for vacuum forming if minimizing initial investment is a priority.

Choose pressure forming for long-term projects requiring durability and refined aesthetics.

Final Considerations

Both vacuum and pressure forming offer distinct advantages depending on your product goals. Vacuum forming delivers speed and affordability for straightforward designs, while pressure forming provides the precision needed for complex, high-quality parts. By evaluating your material choices, design specifications, and production scale, you can select the method that optimizes efficiency, cost, and performance for your manufacturing needs.
