What is an Air Core Coil Inductor? Features and Applications

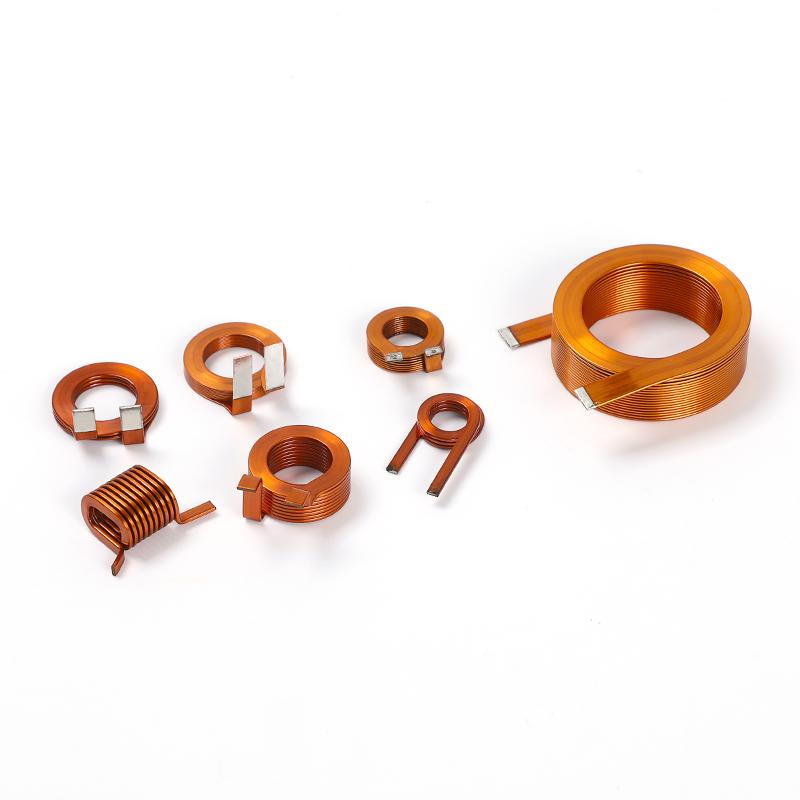

An air core coil inductor [https://www.smdcoil.com/] is a type of inductor that uses air as its core material, rather than magnetic materials like iron or ferrite. Inductors are essential components in electronic circuits, primarily used to store energy in the form of a magnetic field. Unlike other inductors, air core coil inductors do not have a magnetic core, making them free from core losses and capable of maintaining consistent performance over a wide range of frequencies.

Image suggestion: Include a labeled diagram of an air core coil inductor, showing its winding and air core structure.

Image: https://ecdn6.globalso.com/upload/p/113/image_other/2025-02/air-core-coil-inductor-1.jpg

How Does an Air Core Coil Inductor Work?

Air core coil inductors operate based on Faraday's Law of Induction. When an electric current flows through the coiled wire, it generates a magnetic field around the coil. The absence of a magnetic core means that the inductor relies solely on the geometry of the coil and the properties of the air to establish its inductance.

This design makes air core coil inductors [https://www.smdcoil.com/] ideal for applications requiring minimal distortion and high-frequency stability. The lack of a magnetic core ensures that there is no risk of saturation, which can limit the performance of other types of inductors.

Image suggestion: Include a simple animated video or graphic illustrating the magnetic field generation in an air core coil inductor.

Image: https://ecdn6.globalso.com/upload/p/113/image_other/2025-02/air-core-coil-inductor-2.jpg

Key Applications of Air Core Coil Inductors

Air core coil inductors are widely used across various industries due to their reliability and performance advantages. Some primary applications include:

* Communication Equipment: Used in RF circuits and antennas for signal tuning and impedance matching.
* Automotive Electronics: Integral to vehicle control systems, including sensors and filters in electric vehicles.
* Medical Devices: Found in MRI machines and other precision diagnostic tools requiring stable electromagnetic properties.
* Aerospace Technology: Used in satellite systems and radar equipment due to their lightweight and stable characteristics.

Image suggestion: Showcase real-world examples, such as an inductor installed in an automotive circuit or a communication device.

Image: https://ecdn6.globalso.com/upload/p/113/image_other/2025-02/air-core-coil-inductor-3.jpg Factors to Consider When Choosing an Air Core Coil Inductor

When selecting an air core coil inductor [https://www.smdcoil.com/] for a specific application, consider the following factors:

* Material: While the core is air, the wire material and insulation affect performance. High-conductivity materials like copper are preferred.
* Performance Specifications: Evaluate parameters such as inductance value, quality factor (Q), and self-resonant frequency to match application requirements.
* Size and Dimensions: Ensure the inductor fits within the available space in your design while meeting electrical specifications.
* Temperature Stability: Check the inductor's ability to maintain performance in varying temperature conditions.

Image suggestion: Provide a comparison chart highlighting different air core coil inductors' specifications, such as inductance ranges, dimensions, and materials.

Image: https://ecdn6.globalso.com/upload/p/113/image_other/2025-02/air-core-coil-inductor-4.jpg

Conclusion

Air core coil inductors are versatile and reliable components that play a critical role in many electronic applications. Their unique design ensures high efficiency, minimal distortion, and exceptional frequency stability, making them indispensable in modern technology. By understanding their working principles, applications, and selection criteria, you can make informed decisions tailored to your needs.

Image suggestion: End the article with a professional photo of multiple air core coil inductors in a neatly arranged setup, emphasizing their variety and adaptability.

Image: https://ecdn6.globalso.com/upload/p/113/image_other/2025-02/automotive-electronics.jpg
