The Essential Role of JCR2-125 Residual Current Devices (RCDs) in Elec

It is for this reason that electrical safety has for the most part become a primary rider in the ever-evolving world of technology. Electrical circuits can be very useful for various purposes in society but then again they come with various dangers that may be realized if they are not well dealt with. This is the role that is played by the Residual Current Devices (RCDs) [https://www.jiuces.com/rcd/] and Residual Current Circuit Breakers (RCCBs). These are intended to protect individuals and assets from electrical risks by cutting off the circuit rapidly when an unfavorable portion or leakage current is present. One example of such a device is the JCR2-125 RCD [https://www.jiuces.com/2-pole-rcd-residual-current-circuit-breaker-type-ac-or-type-a-rccb-jcrd2-125-product/], which has been purposely designed and developed to minimize the likelihood of receiving a fatal electric shock and minimize the risks associated with electrical fires.

Image: https://www.jiuces.com/uploads/121.png

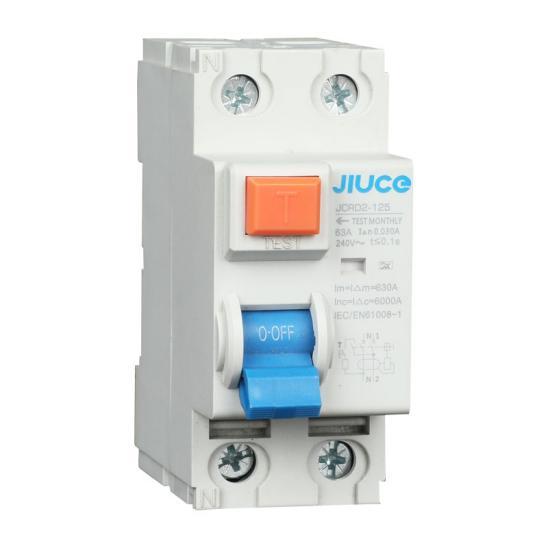

Understanding the JCR2-125 RCD [https://www.jiuces.com/2-pole-rcd-residual-current-circuit-breaker-type-ac-or-type-a-rccb-jcrd2-125-product/]

The JCR2-125 RCD is an electrical device that is highly technical since its main function is to monitor leakage currents to protect the users. If there is a leakage current it means that some portion of the test current is causing current through a non-expected path such as through the body or insulation breakdown. The JCR2-125 is specifically developed to trip off the circuit in such incidences as a way of safeguarding from adverse injuries or losses.

The main features of the new JCR2-125 RCD circuit breaker are described as follows:

The JCR2-125 RCD comes with several critical features that make it highly effective and reliable in ensuring electrical safety: The JCR2-125 RCD comes with several critical features that make it highly effective and reliable in ensuring electrical safety:

Image: https://www.jiuces.com/uploads/212.png

Electromagnetic Type: It also ensures that there is a quick and proper breaking off of the circuit once leakage currents are detected.

Earth Leakage Protection: Reduces risk from electrical faults which can cause electric shocks or fires.

High Breaking Capacity: It has a breaking capacity of up to 6kA, which makes it capable of interrupting not only through a normal current but also a large fault current at the same time without getting damaged.

Multiple Rated Currents: Available in different ratings like 25 amps, 32 amps, 40 amps, 63 amps, 80 amps, and 100 amps puts it in a position to cater to different uses.

Tripping Sensitivity: Three outputs that are 30mA, 100mA, and 300mA to meet the protection requirement of the flow coming out of the apparatus.

Compliance with Standards: Complies with requirements of reliability and safety of IEC 61008-1 and EN61008-1.

Positive Status Indication Contact: It is possible to implement clear and easy-to-recognize visual signals associated with the working sta

Installation Flexibility: It can be fixed to a 35mm DIN rail and has the advantage of being connected at the top or bottom, making it easy to install.

Robust Design: Has mechanical end-use life of 2000 times and electrical end-use life of 2000 times, due to both part and useful operational life.

In this research, there are different RCDs, and below are the types of RCDs and their applications.

The different types of residual current are used to classify RCDs depending on their sensitivity. The JCR2-125 offers both Type AC and Type A RCDs, each suited for specific applications: The JCR2-125 offers both Type AC and Type A RCDs, each suited for specific applications:

Type AC RCDs

Finally, let the type AC RCDs detect the sinusoidal residual alternating current. These are commonly found in home use to guard equipment that is resistive, capacitive, or inductive without using any electronics. They guard against over-swing as well as offer immediate counter-steer as soon as an imbalance is observed.

Type A RCDs

Whereas Type A RCDs can recognize sinusoidal residual current as well as residual pulsating direct current as small as 6mA of current at AC frequency. This makes them appropriate for use where electrical appliances are involved especially in complicated electrical circuitry since they offer better protection in such systems as compared to other types of resistors.

Importance of Tripping Sensitivity

RCD tripping sensitivity refers to the ability of the RCD to respond to the fault that triggered the initiation process, within a certain time. The JCR2-125 offers three levels of sensitivity: The JCR2-125 offers three levels of sensitivity:

30mA: Admits further measures of safeguard against direct touch with live parts, which again makes the equipment good for individual safety.

100mA: Harmonized with the earth system to avoid the threats of indirect touching system and decreased the hazard related to electric fires.

300mA: Provides shielding against second touch and is most advantageous in protection against fires caused by electrical issues.

Technical Specifications of JCR2-125

The technical specifications of the JCR2-125 are tailored to ensure optimal performance and safety in various applications: The technical specifications of the JCR2-125 are tailored to ensure optimal performance and safety in various applications:

Rated Current: It can be acquired in sizes as low as 25A and up to 100A high amperage in the nominal current range.

Rated Working Voltage: Measures 110V, 230V, and 240V for distinct circuit needs or in terms of the circuit capacity needed.

Rated Sensitivity: They come in varieties of currents such as 30mA, 100mA, and 300mA to suit the protection type required.

Breaking Capacity: Fault current breaking up to 6kA can be through its cross-section.

Insulation Voltage: 500V resistor with proper insulation as per VCR rating norms.

Rated Frequency: It is not only used for 50/60Hz applications.

Impulse Withstand Voltage: It has the capability of withstanding as much as 6kV, which is quite beneficial in the event of voltage surges.

Protection Degree: Unnamed and very weak with an IP protection rating of only 20 which means it only shields against particles of solids and dust.

Ambient Temperature: Can work under a temperature of -5 degrees centigrade rise to a temperature of 40 degrees centigrade thus can on environments.

Contact Position Indicator: Gives a clear signal of the status of the device, that is, ON or not by illuminating or flashing red color power light, respectively while the green is for indicating the standby mode.

Image: https://www.jiuces.com/uploads/38.png

Image: https://www.jiuces.com/uploads/43.png

In conclusion, The JCR2-125 RCD as an elemental device is utilized in today's security systems in electrical installations. It is particularly useful in its capacity to rapidly isolate circuits that contain leaking currents that pose risks of electrocution and even fire hazards. Due to the multiple functionalities of the JCR2-125, such as different rated currents, high breaking capacity, and compliance with international standards, it provides efficient protection to residences, businesses, and factories.

Therefore, the varying categorizations of RCDs [https://www.jiuces.com/rcd/] and ascertaining the differences between them are important to enable one to identify the most applicable device for a particular situation. May it be the Type AC for everyday needs or the Type A for areas that require a high level of protection, the JCR2-125 is perfect not only for safeguarding your property but also for providing security to its users. Thus, adopting such progressive instruments allows for minimizing the threats emerging from electrical systems and optimizing living and working conditions.
