Fairchild Semiconductor’s Smart High-Side Switches Provide Designers Reliable Alternatives to Discrete Solutions for Driving Automotive Applications

Solutions Provide High Reliability and Space Savings in Automotive Applications

SAN JOSE, Calif. – May 2, 2012 – In today’s automotive applications, designers need to reliably and safely switch high currents into grounded resistive or inductive loads. This includes applications such as incandescent lamps, motors, and heaters. To do this currently, they either have to rely on discrete or electro-mechanical solutions, or are hampered by limited solutions in the marketplace.

Fairchild Semiconductor (NYSE: FCS), a leading global supplier of high performance power and mobile products, has developed a smart high-side switch family that specifically addresses advanced electrical load control in automotive body electronics. The family provides an alternative to discrete MOSFET solutions, integrating protection and diagnostic features in order to reduce component count and PCB complexity, while offering better system reliability.

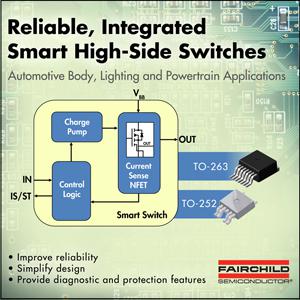

The FDDS100H06_F085 smart high-side switch is an N-channel power MOSFET with charge pump, ground-referenced CMOS-compatible input and diagnostic output with integrated protection functions. The diagnostic feedback capability of the FDDS100H06_F085 provides system control options to minimize impact under various fault conditions.

The FDBS09H04A_F085A and FDDS10H04A_F085A are smart high-side switches incorporating an N-channel power MOSFET device featuring a charge pump, current controlled input and diagnostic feedback with load current sense and integrated Smart Trench chip-on-chip technology.

Part Number: FDBS09H04A_F085A
Description: High side N-channel power MOSFET with charge pump, current controlled input and diagnostic feedback
RDS(ON): 9 mΩ | I load (A): 48 | Supply Voltage (V): 5.5 to 38
Package: TO263_7L

Part Number: FDDS10H04A_F085A
Description: High side N-channel power MOSFET with charge pump, current controlled input and diagnostic feedback
RDS(ON): 10 mΩ | I load (A): 41 | Supply Voltage (V): 5.5 to 38
Package: TO252_5L

Part Number: FDDS100H06_F085
Description: High side N-channel power MOSFET with charge pump, ground-referenced CMOS compatible input and diagnostic output with integrated protective functions
RDS(ON): 100 mΩ | I load (A): 3 | Supply Voltage (V): 5.5 to 37
Package: TO252_5L

Devices in the smart high-side switch family incorporate internal self-protection features that prevent damage to the end systems for conditions such as over temperature, shorted load, load dump and over-voltage, providing high reliability in demanding automotive applications.

Qualified to AEC Automotive standards, the FDDS100H06_F085, FDBS09H04A_F085A, and FDDS10H04_F085A also feature current limitation, short circuit protection, very low standby power, and ESD protection. The devices also feature optimized state electromagnetic compatibility.

The FDDS100H06_F085 and FDDS10H04_F085A are packaged in a TO252-5lead package, while the FDBS09H04A_F085A is available in TO263-7 lead package.

Fairchild’s expertise in power semiconductor devices and packaging modules, combined with extensive testing, simulation and high quality manufacturing allows us to provide products that perform reliably in the most demanding automotive environments, including under-the-hood applications. Our engineering expertise and tools cover all aspects of design and analysis and include simulation capabilities, structural analysis, thermo-mechanical analysis, mold flow analysis and device and package failure.
Fairchild Semiconductor: Solutions for Your Success™

Price: in 1,000 quantity pieces

FDDS100H06_F085: US $1.13

FDBS09H04A_F085A: US $1.95

FDDS10H04A_F085A: US $1.90

Availability: Samples available upon request

Delivery: 8-12 weeks ARO

Contact Information:

To contact Fairchild Semiconductor about this product, please go to: http://www.fairchildsemi.com/cf/sales_contacts/.

For information on other products, design tools and sales contacts, please visit: http://www.fairchildsemi.com.
Note to Editor: For a datasheet in PDF format, please go to:
http://www.fairchildsemi.com/ds/FD/FDDS100H06_F085.pdf
http://www.fairchildsemi.com/ds/FD/FDBS09H04A_F085.pdf
http://www.fairchildsemi.com/ds/FD/FDDS10H04A.pdf
