Analog Backplane AP8a from bmcm: Connection Technology for 5B Modules and Sensors

Maisach/Munich/Germany. Measurement specialist, BMC Messsysteme GmbH (bmcm), releases a new version of its 5B backplane for signal conditioning applications. Comfortable sensor connection, modularity, and ease of use are the key features of the AP8a.

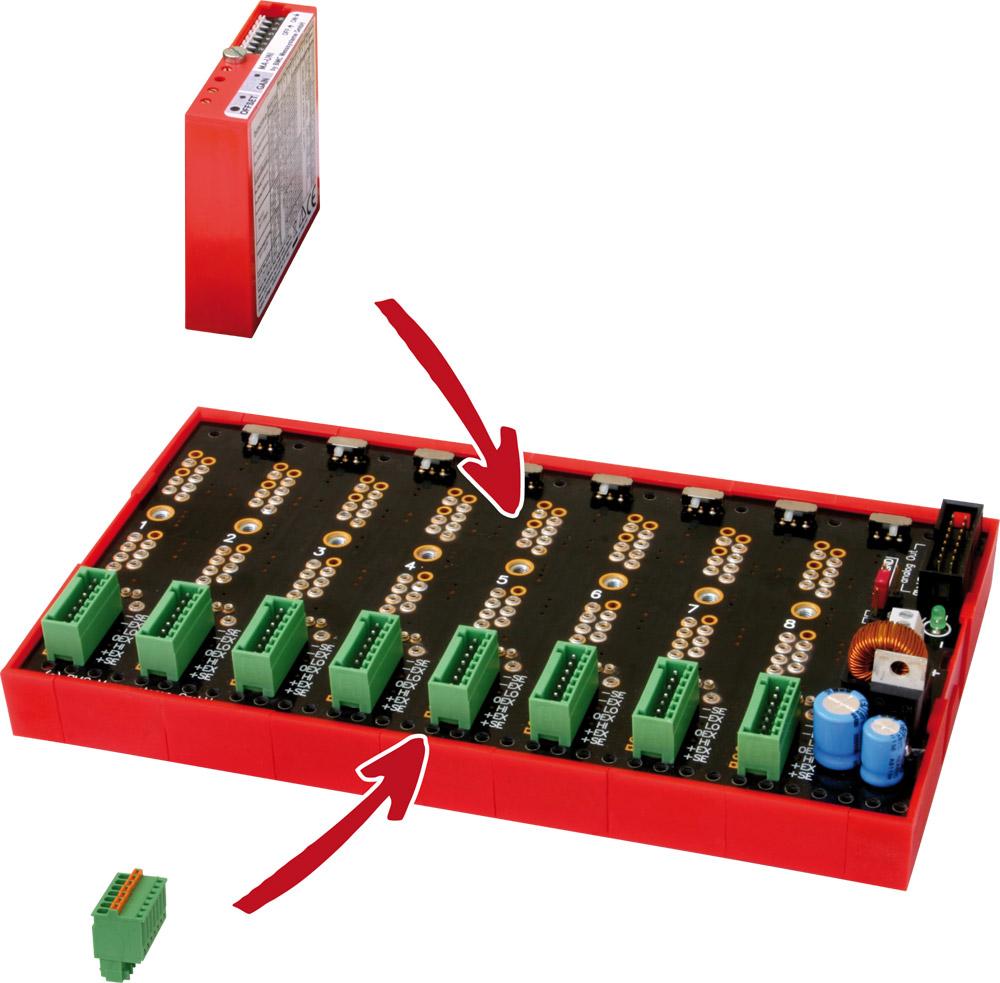

The compact AP8a board from bmcm provides eight slots for measuring amplifiers and converters in 5B standard. Due to the variety of available 5B modules, even the most specific measurement tasks can be realized simply and individually.
--> http://www.bmcm.de/us/pr-ap8a.html

The analog backplane is particularly suitable for data acquisition in the industrial sector, for example on test stands. It can be mounted to a DIN rail.
As the AP8a does not necessarily require a 5V power supply as commonly used, but features a wide-range power supply with a 9-40V in addition, it can be used for a wide range of applications.

The amplifier outputs are available at a multipoint connector to be attached to the inputs of a PC data acquisition system. A pluggable spring clamp connection (available as accessory) is used for signal connection allowing for the sensor connection to be prepared separately. On site, the terminal blocks only have to be plugged in the relevant input connector of the AP8a.

Since most of the 5B measuring converters feature galvanic isolation, the channels are isolated from each other and from the data acquisition and control system protecting the whole system against high potentials and interferences.

The module installation is so simple (plug in - screw tightly - ready) that a replacement is quickly done and the system can be adapted to a new measurement task at any time.

To equip the AP8a, BMC Messsysteme GmbH (bmcm) offers a great choice of 5B measuring amplifiers and function modules.
--> http://www.bmcm.de/us/prgr-measamp.html

The analog backplane is also available as a 2-channel version AP2 for all needing less channels.

Further information about modular amplifier technology is provided on the website of BMC Messsysteme GmbH at www.bmcm.de/us

*** About BMC Messsysteme GmbH (bmcm) ***

BMC Messsysteme GmbH was founded in 1994 as an independent corporation with headquarters in Maisach, app. 30 km west of Munich. bmcm is one of the only German companies that completely develops and produces in Germany. The products of data acquisition and PC measurement from BMC Messysteme GmbH stand for quality "made in Germany". A high value is set on keeping an excellent price/performance ratio. Since establishing a direct distribution in July 2006, customers have been able to profit from the advantage of direct contact to the manufacturer.

BMC Messsysteme GmbH serves the following business areas:

* Data acquisition components and PC measurement technology *
This comprises a wide range of connection systems, measuring amplifiers, data acquisition cards (internal and external), "ready-for-use" data acquisition systems, data loggers and the appropriate software for visualization, recording and analysis.
http://www.bmcm.de/us/prgr-products.html

* D2M (Design to Manufacturing) and OEM products *
BMC Messsysteme GmbH develops and produces electronic components according to customer specifications.
http://www.bmcm.de/us/co-d2m.html

You will receive high-quality products manufactured already since the beginning of 2006 according to the RoHS directive. Of course, the corresponding documentation and CE test is always included.
A German documentation is obligatory for us, as well as an English description to be available to our international customers.
